Powder Metallurgy Parts
Small gears, structural parts, irregular metal parts
- Material Fe-based, Cu-based, SS 316L, WC-Co cemented carbide
- Process Powder pressing, sintering, re-pressing, post, CNC
- Tolerance ±0.05mm
- Lead Time 20-35 days
Product Details
Powder metallurgy parts are made by pressing metal powder and sintering at high temperature, especially suitable for mass-producing complex small parts with high material utilization and low cost.
Applications
- Automotive engine components
- Power tool gears
- Office equipment structures
- Hardware tool parts
- Medical device components
Typical Size Range
- Min
- Weight 0.5g
- Max
- Φ100×50mm
- Other
- Single-piece weight ≤500g
Common Materials
| Material Grade | International Standard | Typical Application |
|---|---|---|
| Fe-Cu-C iron-based | FN-0205 / MPIF | General structural, low cost |
| Fe-Ni-Cu | FN-0405 | High-strength structural |
| SS 316L | AISI 316L | Corrosion-resistant parts |
| Cu-Sn copper-based | CT-0010 | Self-lubricating bearings |
Process Capabilities
- Powder selection and formulation
- Die design and pressing (100-800MPa)
- High-temp sintering (1100-1300°C atmosphere)
- Sizing re-pressing (density and accuracy)
- Post-processing (oil impregnation, CNC, surface)
Powder Metallurgy Parts Part Gallery

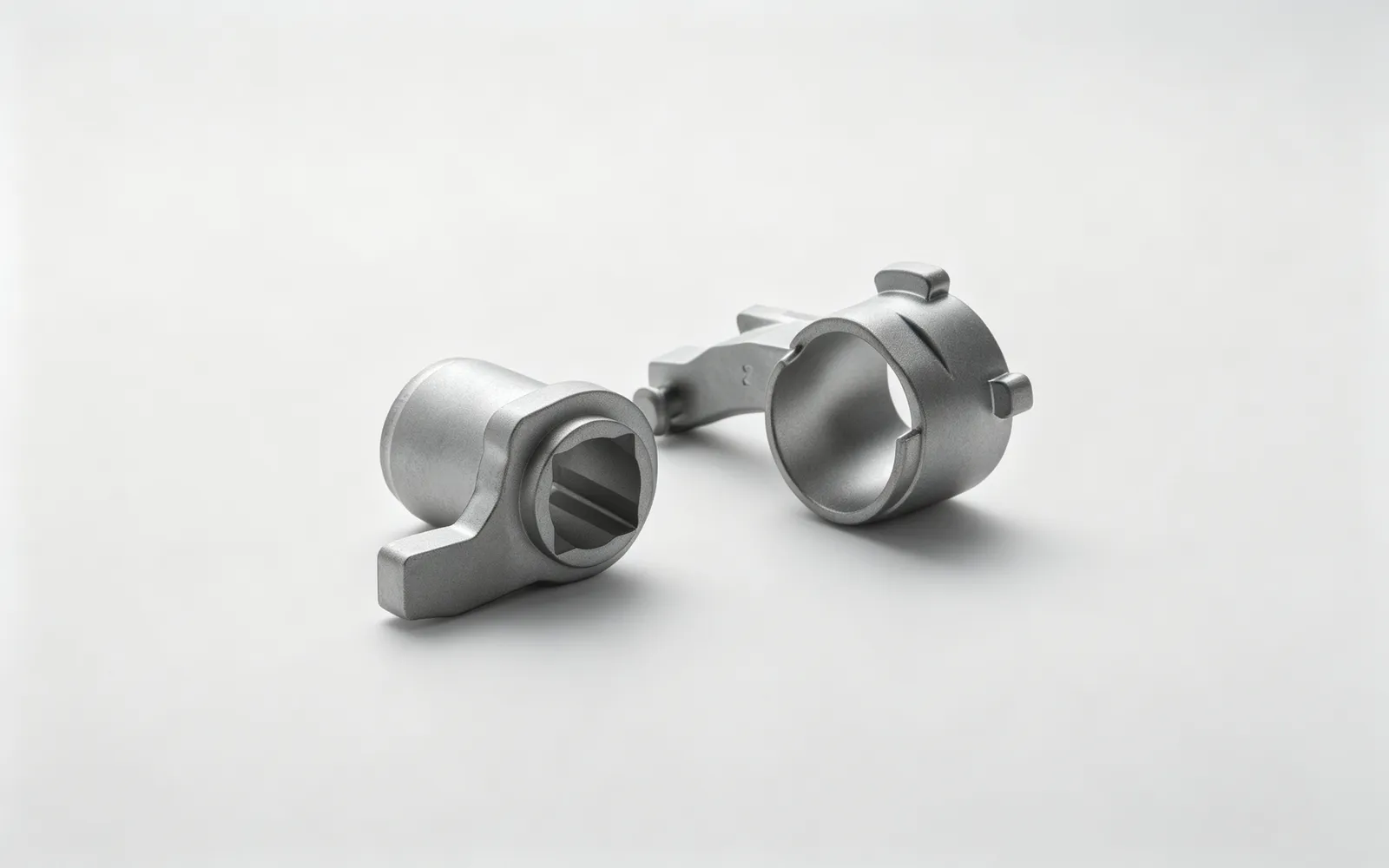

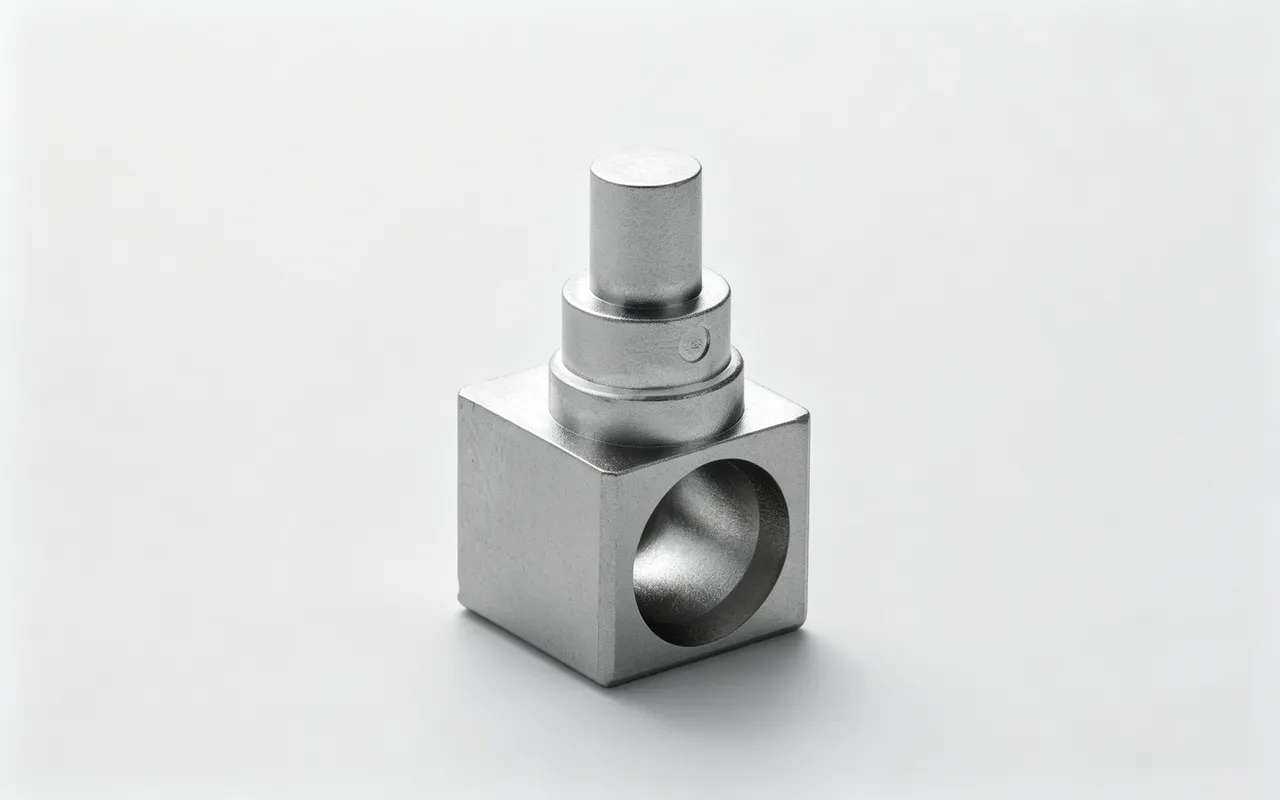

Finished parts and typical process features (3 photos)
01
02
03 Frequently Asked Questions
What is the MOQ?
Powder metallurgy has tooling cost — typical MOQ is 1000-3000 pieces. Existing tooling allows smaller batches.
MIM vs conventional PM?
MIM suits very complex small parts with high material utilization and surface finish. Conventional PM suits simpler medium-small parts at lower cost.
What density can be achieved?
Standard pressing 6.8-7.2 g/cm³; with re-pressing up to 7.4 g/cm³ (near forging density). MIM can exceed 7.6 g/cm³.
Do PM parts need oil impregnation?
Self-lubricating bearings (such as copper-based) are typically oil-impregnated. Gears with service lubrication usually are not — we recommend per working conditions.
Detailed Content
Powder Metallurgy Parts
Powder metallurgy parts are made by pressing metal powder and sintering at high temperature, especially suitable for mass-producing complex small parts with high material utilization and low cost.
